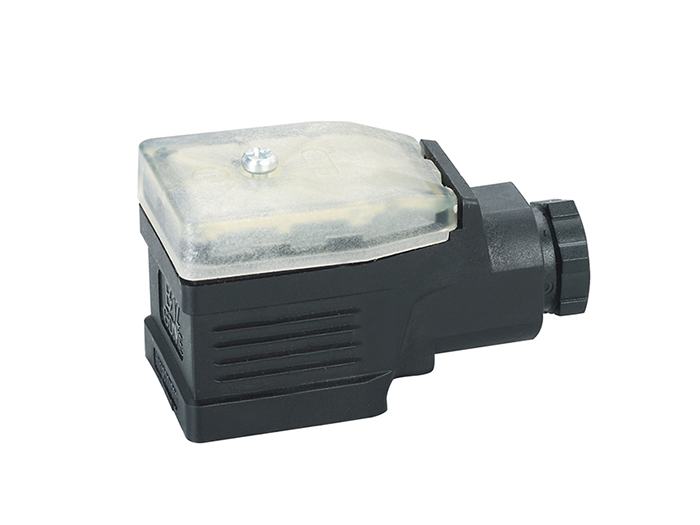

ADF PLUG TYPE DIGITAL PROPORTIONAL AMPLIFIER
VALVES > Proportional Valves
Proportional valves offer precise fluid control. They continuously adjust valve openings in response to input signals, enabling smooth and accurate flow rate or pressure regulation. These valves are essential in various applications, including hydraulics, pneumatics, and medical technology.
Please send your inquiry here
  • Remark: The amplifier can directly install on a proportional valve, and it meets the requirements of DIN EN 175301-803 for protection degree IP65.
  • Feature: The amplifier has the function of splash-proof, so it can be used in different environments without any tools and freely set the related data which can be matched with different item and resistance proportional valve.

Ordering Code Table:

Code Component Value Description
ADF – Amplifier series
11 – Plug type: mounting
A – Cable output
01 – Single solenoid
D2 – Voltage: 24VDC
3 – Rated input: 0…+10VDC
40 – Series code

Technical Data Table:

Parameter Value
Voltage 24VDC
Rated voltage 0…+10VDC
Input impedance ≥100Kohm
Signal 200Hz
No load loss 0.3W
Current 0-1600mA (Suit to different proportional valve)
Min current 0-600mA adjustable
Max current 1600mA adjustable
