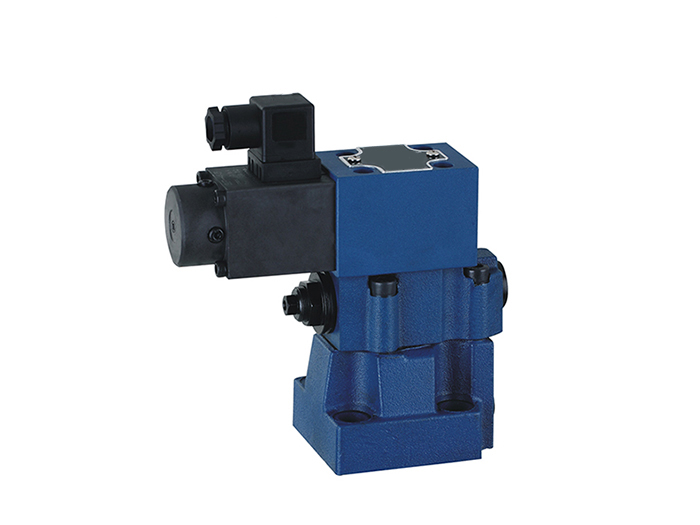

The valves are designed for pipe installation and suitable for use with mineral-based hydraulic oils. They offer a range of pressure stages and supply voltages for the electronics.
Ordering Code Table:
| Code Component | Value | Description |
|---|---|---|
| DBE | – | Proportional relief valve series |
| E | – | Without maximum pressure relief function |
| 10 | – | Size: 10 = NG10, 20 = NG20, 30 = NG30 |
| 5X | – | Component series: 50 to 59 = 5X (unchanged installation and connection dimensions) |
| 31 | – | Pressure stage: up to 6 MPa = 5, up to 10 MPa = 10, up to 20 MPa = 20, up to 31.5 MPa = 31 |
| Y | – | Unloading port X: external pilot oil drain |
| D24 | – | Supply voltage of electronics: D24=24VDC |
| Seals | NBR, FKM | Seal material options |
