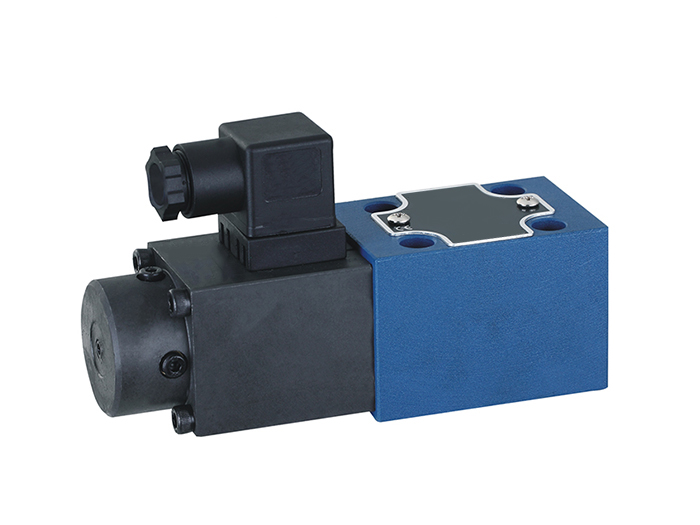

DBET SERIES PROPTIONAL CONTROL VALVES
VALVES > Proportional Valves
Proportional valves offer precise fluid control. They continuously adjust valve openings in response to input signals, enabling smooth and accurate flow rate or pressure regulation. These valves are essential in various applications, including hydraulics, pneumatics, and medical technology.
Please send your inquiry here
  • Product Series: DBET (Proportional control valves)
  • Hydraulic Symbol: A simple 2-way valve symbol is shown.
  • The valves are designed for pipe installation and suitable for use with mineral-based hydraulic oils.
  • They offer various maximum pressure capabilities ranging from 5 MPa to 31.5 MPa.
  • The valves have an electric connection with a DIN 43650 connector and can be manually overridden.
  • The solenoid has a maximum current of 0.8A (S) and 1.5A (15).

Ordering Code Table:

Code Component Value Description
DBET – Proportional control valve series
X – Installation hole configuration
D24 – Electric connection with DIN 43650 connector
N – Manually override function
H – Solenoid voltage: D24=24VDC
Seals FKM, NBR Seal material options
Max Pressure 5, 6, 18, 25, 31.5 MPa Maximum pressure rating
Solenoid S, 15 Maximum solenoid current (0.8A, 1.5A)
