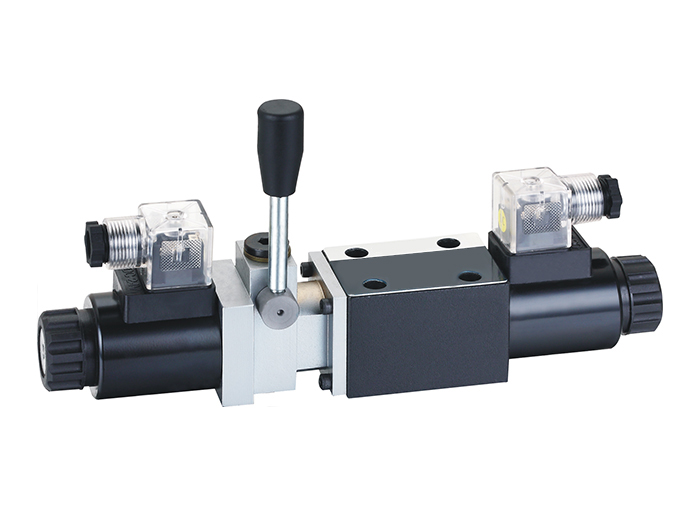

DMSG SERIES SOLENOID DIRECTIONAL VALVE WITH EMERGENCY HANDLE
VALVES > Directional Valves
A directional valve is a type of hydraulic or pneumatic control component that directs or controls the flow of fluid (oil, air, or other media) by switching flow paths. It determines the path of fluid flow in a hydraulic or pneumatic circuit, controlling the direction of motion of actuators like cylinders and motors.
Please send your inquiry here

Product Series: DMSG – Solenoid directional valve with emergency handle

Product Features:

  1. This valve can work even in the case of power failure.
  2. There are two different circuit for your choosing acc cording to the install requirement.
  3. When the valve operated by electrical , the handle will stay in the original location, the handle will not effect any valve performance.
  4. It can be used as the pilot valve of hydraulic control directional valve.
  5. The mounting surface is same as DIN24340 A type and WE series.

Ordering Code Breakdown:

  • DMSG: Solenoid directional valve with emergency handle
  • 02: Size 2=NG6
  • 1X: Spool Symbols (Series 10-19, no change of the installation and connection size)
  • E: Connect with solenoid thread
  • Electrical Options: D12, D24, R110, R220, A110, A220
  • No Code = NBR Seals, V = FKM Seals
  • Handle Position: no code = handle is placed in a vertical position

Additional Details:

  • Connector Type: H = DIN43650 Type Plug, L = DIN43650 Type Plug with Lamp
  • F: Deutsch Protection degree IP69K
  • A: AMP Junior-Timer protection degree IP66
  • D: with two lead wires
