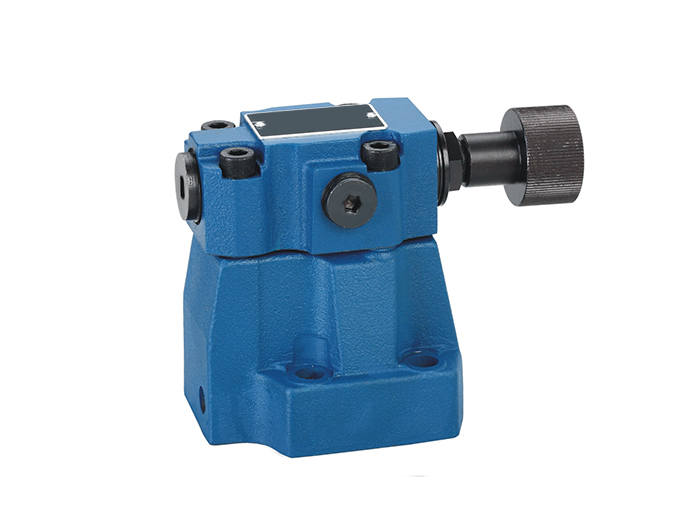

DR SERIES PILOT OPERATED REDUCING VALVES
VALVES > Pressure Valves
Pressure valves control pressure in systems. They prevent damage, reduce energy waste, and ensure safety. Common types include relief, reducing, control, and safety valves.
Please send your inquiry here
  • Mounting surface according to DIN24340 D type and 5781, used for block installation with threaded connection
  • Offers five pressure adjustment ranges
  • Includes 4-way, double solenoid, motor-operated valves and 3-way, single solenoid, motor-operated valves, as shown in the spool symbol diagrams

Ordering Code Table:

Code Component Value Description
DR – Valve series
L50 – Pressure adjustment range
Y – Control oil effluent
Size 10, 15, 20, 25, 32 Connection size (subplate or thread mounting)
Connection Way =10, =15, =20, =25, =30 Subplate or thread mounting
Seals NBR, FKM Seal material options
Check Valve M, – With or without check valve
Pressure Range 5, 10, 20, 31.5, 35 MPa Maximum pressure the valve can reach
Series 30, L50 Standard series or new L50 series
