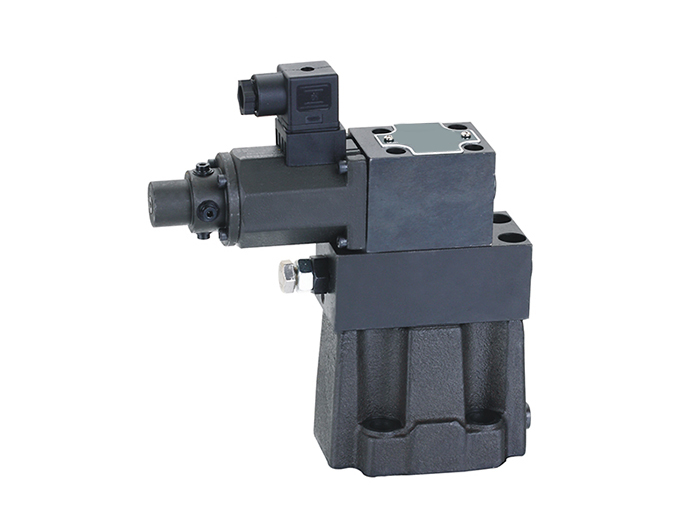

EBG SERIES PROPTIONAL CONTROL VALVES
VALVES > Proportional Valves
Proportional valves offer precise fluid control. They continuously adjust valve openings in response to input signals, enabling smooth and accurate flow rate or pressure regulation. These valves are essential in various applications, including hydraulics, pneumatics, and medical technology.
Please send your inquiry here
  • Product Series: EB (Electric-hydraulic proportional relief valves)
  • Hydraulic Symbols:
    • EBG*T: 2-way, 3-position, direct-operated, normally closed valve
    • EBG*: 2-way, 3-position, direct-operated, normally open valve
  • The valves are designed for subplate mounting.
  • They offer a pressure adjustment scope of 7-16 MPa or 7-25 MPa.
  • The valves are available in size 03, 06, and 10.
  • The coil voltage options are D24 (DC24V) or D12 (DC12V).

Ordering Code Table:

Code Component Value Description
EB – Electric-hydraulic proportional relief valve series
G – Mounting type: G = subplate mounting
03, 06, 10 – Valve size
C – Pressure adjustment scope: 7-16 MPa
T – Without safety valve
D24 – Rated voltage: D24=DC24V, D12=DC12V
10 – Design code
