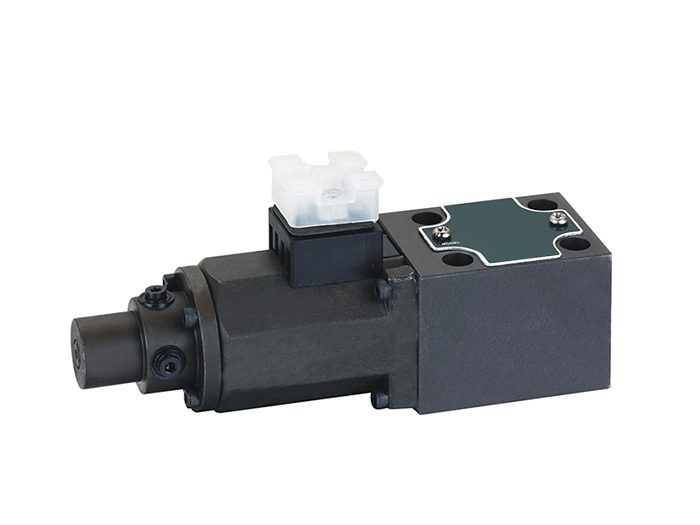

EDG SERIES PROPTIONAL VALVES
Proportional valves offer precise fluid control. They continuously adjust valve openings in response to input signals, enabling smooth and accurate flow rate or pressure regulation. These valves are essential in various applications, including hydraulics, pneumatics, and medical technology.
  • Product Series: ED (Proportional control valves)
  • Hydraulic Symbol: A simple 2-way valve symbol is shown.
  • The valves are designed for subplate mounting.
  • They offer various pressure adjustment scopes:
    • B: 0.5-7.0MPa
    • C: 1.0-16MPa
    • H: 1.1-25MPa

Ordering Code Table:

Code Component Value Description
ED Proportional control valve series
G Mounting way: G = subplate mounting
01 Design code
H Pressure adjustment scope: 1.1-25MPa
10 Specification: 01
