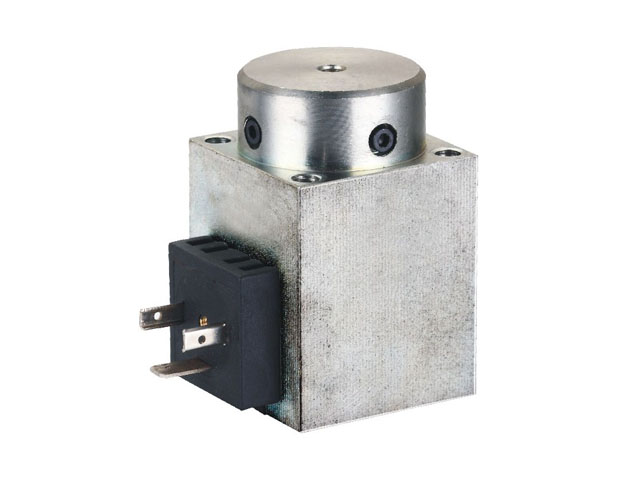

GP-45
Solenoids convert electrical energy into mechanical motion. They consist of a coil of wire that generates a magnetic field when energized, pulling a movable plunger. Solenoids are used in various applications, such as valves, locks, and automotive systems, to control fluid flow, open and close doors, and operate switches.



Technical Data Value
Rated current (A) 0.6
Rated resistance (Ω/20°C) 40
Rated force (N) 120
Protection class IP65
Working stroke (mm) 8
Total stroke (mm) 8
Working pressure (MPa) 21
Duty cycle (%) 100
Rated force hysteresis (%) ≤3.8
Rated current hysteresis (%) ≤3
Insulation class H
