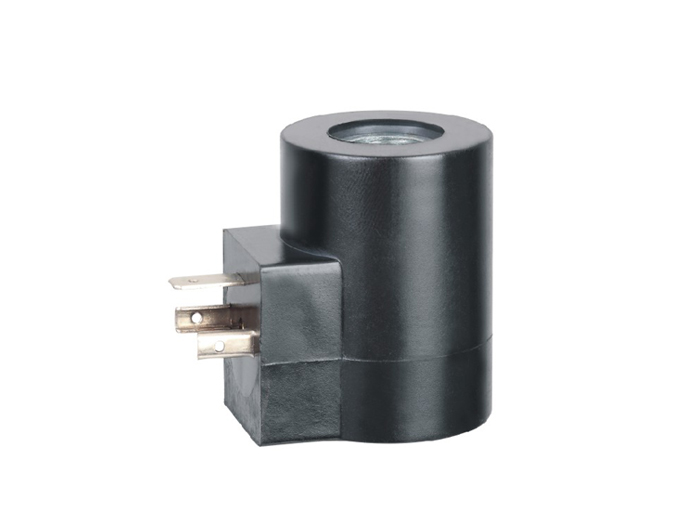

HC-C-14-XH
Coils are essential components in many electrical and electronic devices. They are typically made of wire wound into a spiral shape. When an electric current flows through the coil, it generates a magnetic field.
  • Rated voltage: DC 10V, 12V, 24V, RAC 110V, 220V
  • Power consumption: 22W
  • Holding VA: 24VA
  • Coil type: HC-C-14-H
  • Connector type: DIN 43650/ISO 4400
  • Duty cycle: 100%ED
  • Protection class: IP65
  • Insulation class: H
  • Operating temperature: -20°C to +50°C
