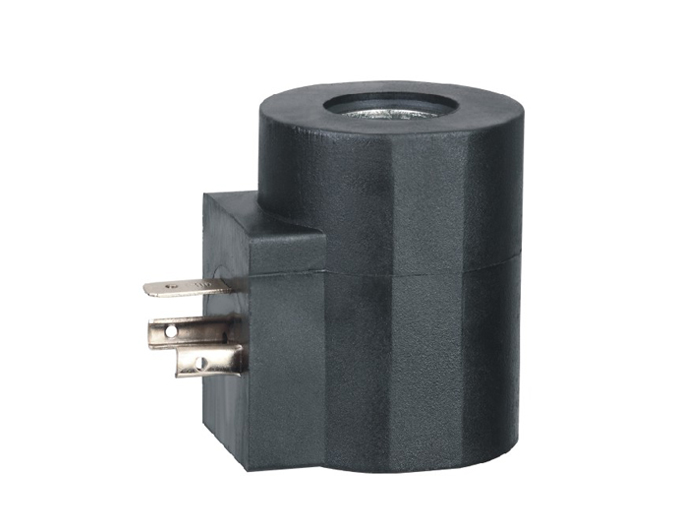

HC-C2-16-XH
Coil for cartridge valves > COILS
Coils are essential components in many electrical and electronic devices. They are typically made of wire wound into a spiral shape. When an electric current flows through the coil, it generates a magnetic field.
Please send your inquiry here

Coil no.: HL-D03H
Coil type: HC-C2-16-H
Rated voltage: DC 10V, 12V, 24V / RAC 110V, 220V (other voltages on request)
Power consumption: 26W
Holding VA: 33VA (other powers on request)
Connector type: DIN 43650/ISO 4400
Duty cycle: 100% ED
Protection class: IP65
Insulation class: H
Operating temperature: -20°C to +50°C
