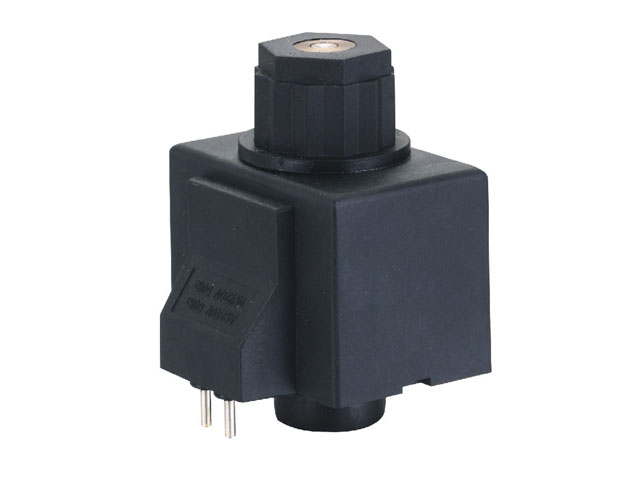

J10-54Y
Solenoids convert electrical energy into mechanical motion. They consist of a coil of wire that generates a magnetic field when energized, pulling a movable plunger. Solenoids are used in various applications, such as valves, locks, and automotive systems, to control fluid flow, open and close doors, and operate switches.



Technical Data Value
Rated voltage (V) AC 110V 220V
Rated frequency (Hz) 50-60HZ
Supply voltage tolerance (%) +10~-15
Rated force (N) 54
Protection class IP65
Rated stroke (mm) 4
Total stroke (mm) 8.5
Working pressure (MPa) 21
Holding VA (VA) 70
Duty cycle (%) 100
Insulation class H
Encapsulated material PA66
Connection size for Yuken type
