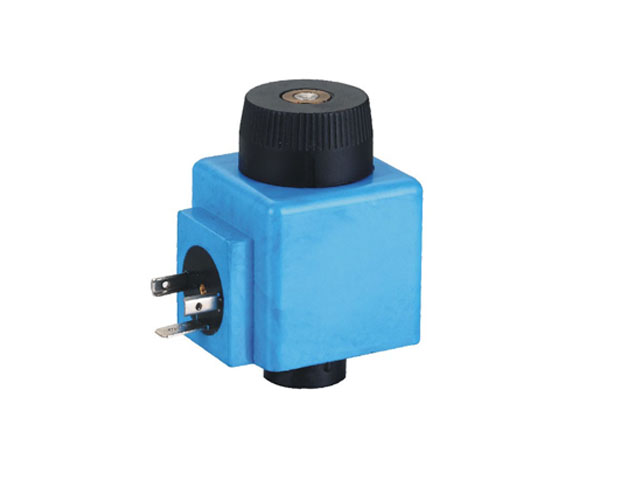

J9-27YC
SOLENOIDS
Solenoids convert electrical energy into mechanical motion. They consist of a coil of wire that generates a magnetic field when energized, pulling a movable plunger. Solenoids are used in various applications, such as valves, locks, and automotive systems, to control fluid flow, open and close doors, and operate switches.
Please send your inquiry here
Parameter/Parameter Name Value/Specification
Rated voltage/(V) AC 110V 220V 50-60HZ
Supply voltage tolerance/(%) +10~ -15
Rated force/(N) 27
Protection class IP65
Rated stroke/(mm) 2.8
Total stroke/(mm) 6.5
Working pressure/(MPa) 21
Holding VA/(VA) 53
Duty cycle/(%) 100
Insulation class H
Encapsulated material DMC
Connection size for Vickers 60 type

Key differences from the previous MFJ8 series models:

  1. This is MFJ9 series (different model family)
  2. Single Holding VA value of 53 (vs multiple values in MFJ8)
  3. Encapsulated material is only DMC (vs PA66/DMC in MFJ8)
  4. Different connection size: for Vickers 60 type (vs Rexroth type)
  5. Different housing color (blue vs black)
  6. Dimensional drawings show 63.5mm length and 46mm width

The basic operational specifications (rated force, stroke, pressure, etc.) are similar to the MFJ8-27Y/YC models.
