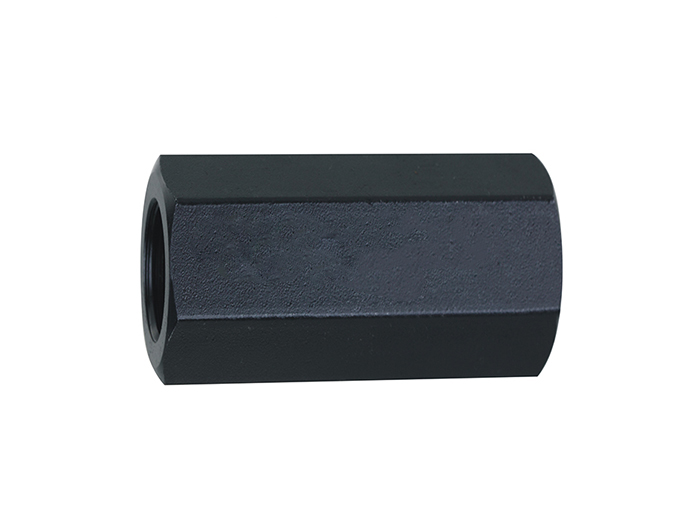

The S Type Check Valve is designed to allow hydraulic oil flow in one direction while blocking flow in the opposite direction. This one-way flow characteristic is essential in hydraulic systems where controlled flow is needed to prevent backflow. The valve features a pipe connection (type “G”) for easy installation in various hydraulic systems.
| Parameter | Description |
|---|---|
| Function | Allows flow in one direction (from P1 to P2), blocks flow in the opposite direction. |
| Connection Type | Pipe connection (Type “G”) |
| Spool Symbol |
Flow direction symbol from P1 to P2 |
| Position | Code | Description |
|---|---|---|
| 1 | S | Product series: S Type Check Valve |
| 2 | G | Pipe connection: Type G |
| 3 | Nominal Diameter | Diameter sizes available: 6, 8, 10, 15, 20, 25, 30, 40 |
| 4 | Starting Pressure | Starting pressures available: |
| 0 | Without spring | |
| 1 | Starting pressure: 0.05 MPa | |
| 2 | Starting pressure: 0.15 MPa | |
| 3 | Starting pressure: 0.30 MPa | |
| 5 | Starting pressure: 0.50 MPa | |
| 5 | Connection Type | No mark = Inch size, 2 = Metric size |
| 6 | Customization | 0 = Standard (no customization), customized by manufacturer upon request |
