Z2S SERIES MODULAR TYPE HYDRAULIC CONTROL CHECK VALVES
VALVES > Directional Valves
A directional valve is a type of hydraulic or pneumatic control component that directs or controls the flow of fluid (oil, air, or other media) by switching flow paths. It determines the path of fluid flow in a hydraulic or pneumatic circuit, controlling the direction of motion of actuators like cylinders and motors.
Please send your inquiry here

Product Description

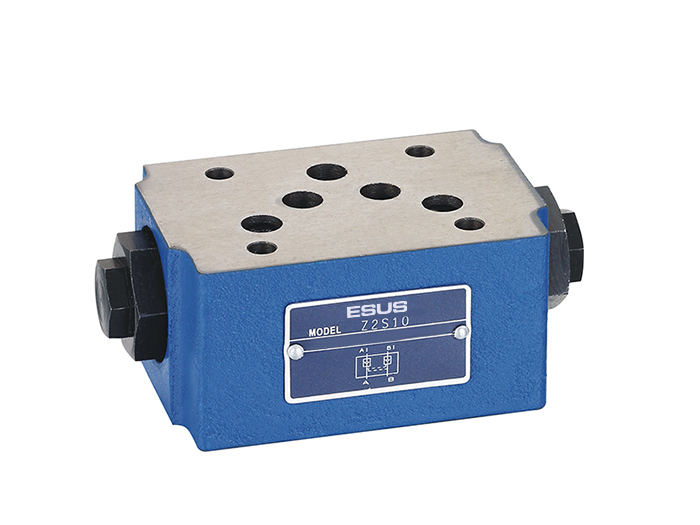

Z2S check valve is a modular type hydraulic control check valve designed to close one or more chamber oil, featuring no leakage and good stability.

Spool Symbol Configurations

Symbol Description
Z2S-A Chamber A with check valve
Z2S-B Chamber B with check valve
Z2S Both chambers A and B have check valve

Ordering Code Reference (Z2S 10)

Basic Configuration

Code Section Description
Z2S Modular hydraulic control check valve

Size Options

Code Description
6 NG6
10 NG10
16 NG16
22 NG22

Chamber Configuration

Code Description
No code Both chamber A and B has check valve
A Chamber A with check valve
B Chamber B with check valve

Seal Options

Code Type
No code NBR Seals
V FKM Seals

Series Numbers

Code Description
10 NG10 Series NO.
30 NG 16,22 Series NO.
40 NG6 Series NO.

Structure Notes

Series Range Description
10-19 Structure and dimension is same
30-39 Structure and dimension is same
40-49 Structure and dimension is same

Technical Notes

  1. Valve side marked as ①
  2. Subplate side marked as ②
  3. Available in blue housing with mounting holes
  4. Modular design for system integration
